The AMD Ryzen 7 9700X and Ryzen 5 9600X Review: Zen 5 is Alive

27 Jun, 2016
(image for) The AMD Ryzen 7 9700X and Ryzen 5 9600X Review: Zen 5 is Alive

They're called the Ryzen 7 9700X and the Ryzen 5 9600X. These processors are part of the Ryzen 9000 series and they have some cool new features. The Ryzen 5 9600X has 6 cores and 12 threads, while the Ryzen 7 9700X has 8 cores and 16 threads. Both of these processors have super fast speeds, with the Ryzen 5 9600X boosting up to 5.4 GHz and the Ryzen 7 9700X boosting up to 5.5 GHz.

One awesome thing about these new processors is that they can work with the same motherboards as the older Ryzen processors. So, if you already have a motherboard that works with Ryzen, you can just update the firmware and use it with the new Ryzen 9000 series. Pretty cool, right? We were hoping for some new motherboards to come out with these processors, but it looks like we'll have to wait a bit longer for those.

Guess what, guys? The new Ryzen 9000 series is here, and it's got some cool upgrades from the last version, Zen 4. AMD says that Zen 5 can do up to 16% better in both single-threaded and multi-threaded tasks. The Ryzen 7 9700X and Ryzen 5 9600X have a power usage of 65 W, which is pretty good. We can't wait to see how well Zen 5 works compared to Zen 4!

AMD Ryzen 7 9700X and Ryzen 5 9600X: Zen 5 For Desktop

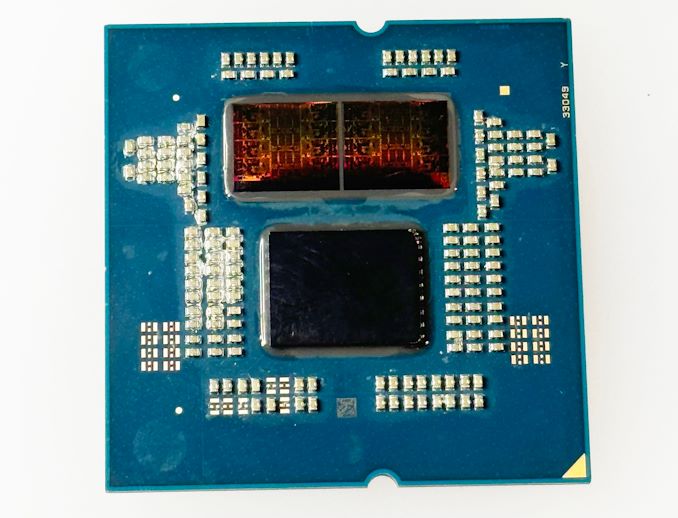

For the past few months, AMD has been talking about their new Zen 5 microarchitecture that they showed off at Computex 2024. They've made some cool changes to their Ryzen processors for Zen 5, especially in how the cores are designed. It's interesting that they're still using the same IOD from Zen 4, but the Ryzen 9000 series is getting an upgrade with the new Zen 5 cores. The I/O die is made by TSMC on their 6 nm node.

Zen 5 is like the cool new upgrade to Zen 4, making it faster and more efficient. It has bigger caches, which are like storage spaces for data, and can handle more instructions at once. The Execution Units, which do all the heavy lifting, are also improved with more power. Zen 5 is designed to handle data better and use less power than Zen 4. It also has a special feature called Simultaneous Multi-Threading, which helps it do multiple tasks at the same time.

Zen 5 processors are made using a new technology called TSMCs N4P node, which is even better than the one used for Zen 4. This new technology makes Zen 5 faster, more efficient, and cheaper to produce. Overall, Zen 5 is like the upgraded version of Zen 4, with better performance and more advanced technology.

The new AMD Zen 5 chip is super powerful, with up to 16 cores and 1 MB of cache per core. It also has a cool integrated GPU with 1 WGP and 2 CUs for graphics. This chip is great for people who don't have a separate graphics card. It can handle lots of data at once and even has special features for video and audio. Plus, it supports fast DDR5 memory and lots of PCIe lanes for connecting other devices. Overall, this chip is a big step up from older models and is ready for the future of technology.

AMD Ryzen 9000 Series Processors
Zen 5 Microarchitecture (Granite Ridge)
AnandTechCores /
Threads
Base
Freq
Turbo
Freq
L2
Cache
L3
Cache
TDPMSRP
Ryzen 9 9950X16C / 32T4.3GHz5.7GHz16 MB64 MB170 W$649
Ryzen 9 9900X12C / 24T4.4GHz5.6GHz12 MB64 MB120 W$499
Ryzen 7 9700X8C / 16T3.8GHz5.5GHz8 MB32 MB65 W$359
Ryzen 5 9600X6C / 12T3.9GHz5.4GHz6 MB32 MB65 W$279

Check out the new Ryzen 9000 lineup from AMD! They've announced four different models so far. The top dog is the Ryzen 9 9950X, with a whopping 16 cores, a max speed of 5.7 GHz, and 80 MB of cache. The next one down is the Ryzen 9 9900X, with 12 cores and a max speed of 5.6 GHz. The big change with these new chips is that they use Zen 5 architecture instead of Zen 4, and they have lower power usage compared to the older models. Pretty cool stuff!

Let's talk about two cool processors today: the Ryzen 7 9700X and the Ryzen 5 9600X. The Ryzen 7 has 8 cores and can go as fast as 5.5 GHz, while the Ryzen 5 has 6 cores and can go up to 5.4 GHz. Both have 32 MB of L3 cache and use 65 watts of power. Their older versions, the Ryzen 7 7700X and Ryzen 5 7600X, needed more power at 105 watts.

AMD is really focused on making these processors more efficient. Even though the new ones have similar speeds to the older ones, they use less power. This means they can do more with less energy. The new processors also support faster memory, DDR5-5600 compared to DDR5-5200 on the older ones. AMD is always working to make their processors better and more efficient.

AMD AM5 Chipset Comparison
FeatureX870EX870X670EX670B650E
CPU PCIe (PCIe)5.05.05.04.05.0
CPU PCIe (M.2 Slots)At Least 1 PCIe 5.0 Slot
Total CPU PCIe Lanes24
Chipset PCIe Lanes (Max)4.0: 12
3.0: 8
4.0: 8
3.0: 4
4.0: 12
3.0: 8
4.0: 8
3.0: 4
USB4Mandatory
(Discrete, Consumes 4 Chipset PCie 4.0 Lanes)
Optional
SATA Ports (Max)84884
DDR5 SupportQuad Channel (128-bit bus)
Wi-FiWi-Fi 7 (Discrete)Wi-Fi 6E (Discrete)
CPU Overclocking SupportYes
Memory Overclocking SupportYes
# of Chips21221
SiliconASMedia Promontory 21
AvailableExpected Sept. 2024Expected Sept. 2024Sept. 2022Sept. 2022Oct. 2022

So, the new Ryzen 9000 is pretty cool because it can fit into the same socket as the older Ryzen 7000 series. But, motherboard companies are making new motherboards with the X870E and X870 chipsets to go along with it. These new motherboards all have the same ASMedia Promontory 21 chipset inside, but they have different features.

One big change with the X870E/X870 motherboards is that they all support USB 4.0, which is a big upgrade from the older X670(E) boards. They also have Wi-Fi 7 support, which is even better than Wi-Fi 6E from the 600 series. Plus, they all have at least one PCIe 5.0 NVMe slot, which is pretty cool.

AMD says that both X870E and X870 motherboards have a total of 44 PCIe lanes, with 24 coming from the CPU and 20 from the chipset. So, these new motherboards have some awesome new features that make them stand out from the older ones. Cool, right?

If you already have an AM5 motherboard, you don't need to rush to upgrade unless you really want features like Wi-Fi 7. The new X870E and X870 motherboards are expected to come out in September, but there's no official release date yet. The AMD Ryzen 7 9700X is priced at $359, which is $40 cheaper than the Ryzen 7 7700X. The Ryzen 5 7600X is $279, $20 less than the Ryzen 5 7600X from two years ago. AMD is being competitive with their pricing for Zen 5. Now we need to see how these new chips stack up against Zen 4 and Intel's Raptor Lake chips like the Core i5-14600K. Let's see how Zen 5 performs!
