Ubiquiti 802.3at 30W PoE Injector - U-POE-AT

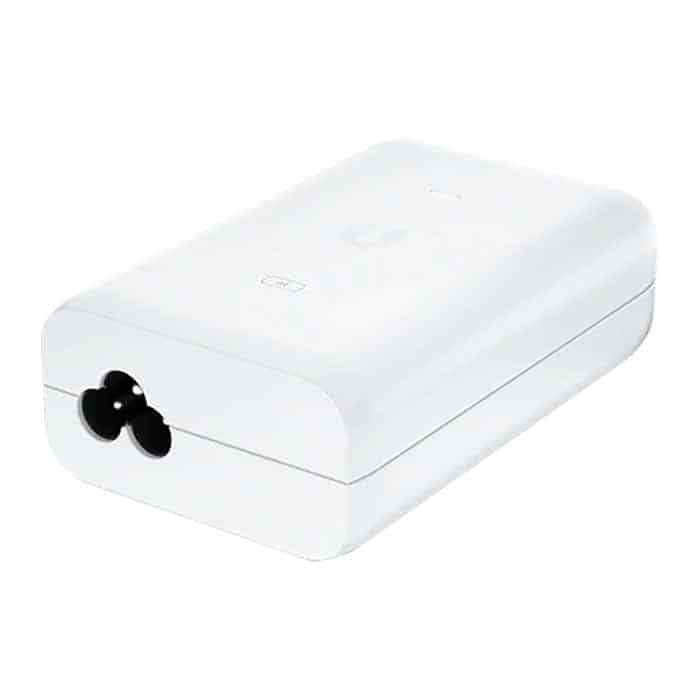

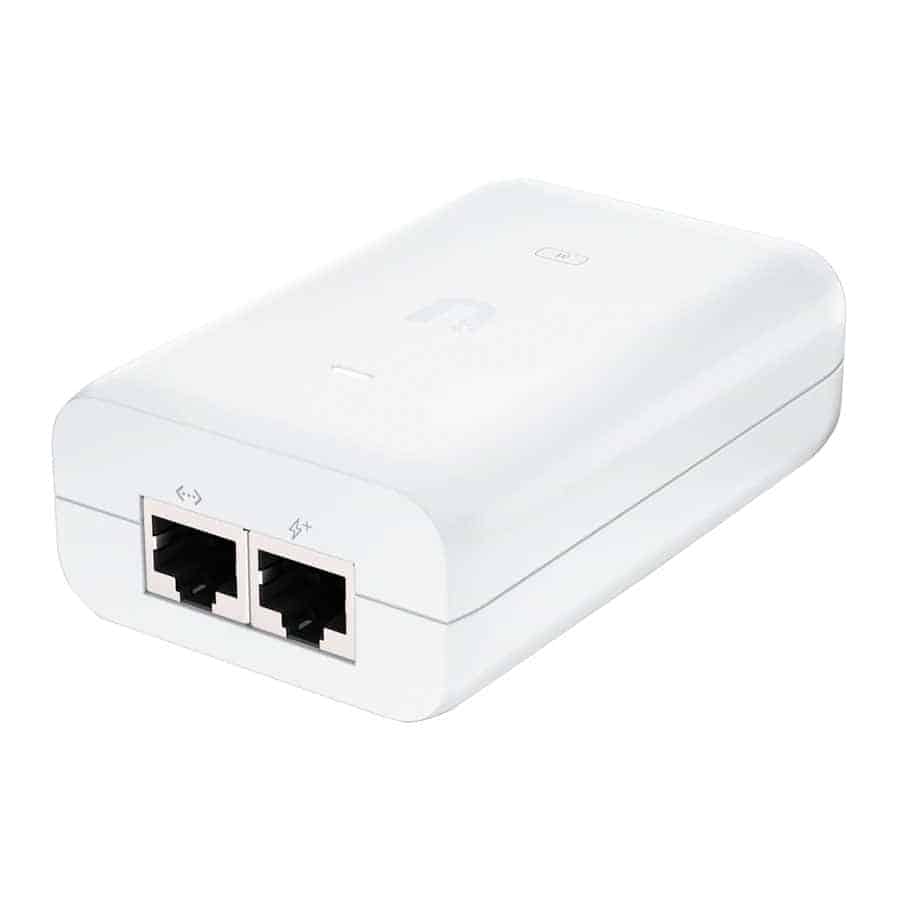

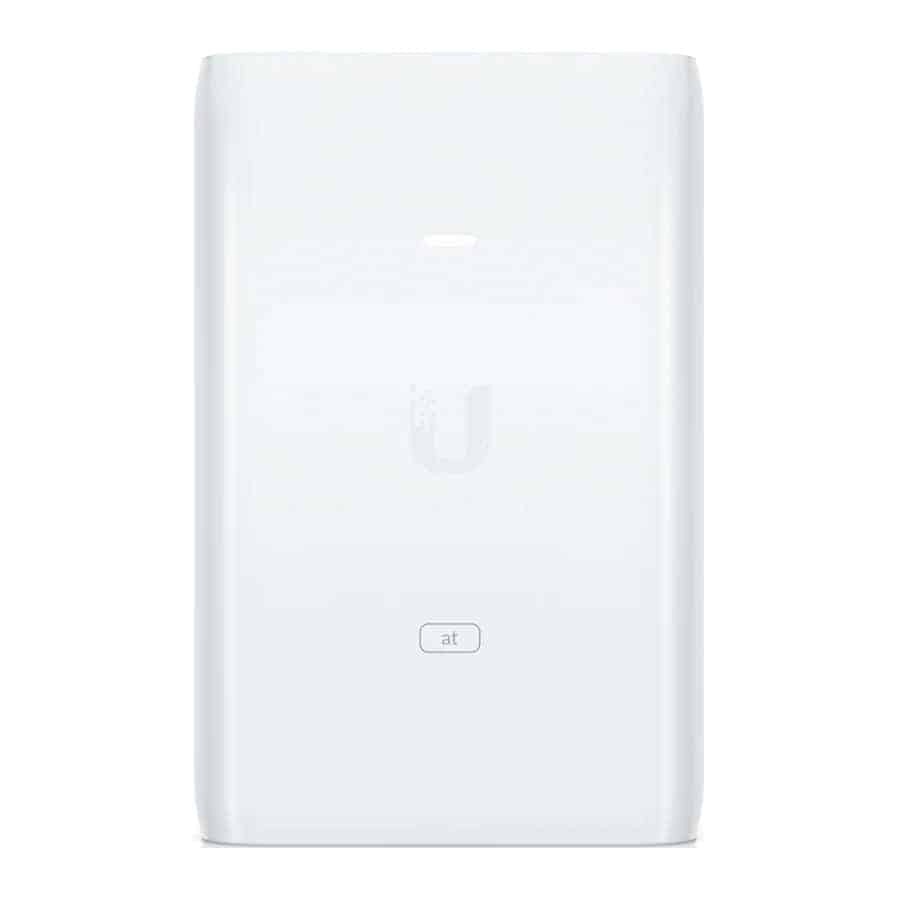

(image for) Ubiquiti 802.3at 30W PoE Injector - U-POE-AT
(image for) Ubiquiti 802.3at 30W PoE Injector - U-POE-AT
(image for) Ubiquiti 802.3at 30W PoE Injector - U-POE-AT
(image for) Ubiquiti 802.3at 30W PoE Injector - U-POE-AT
  • In Stock:  10

Ubiquiti 802.3at 30W PoE Injector - U-POE-AT

£24.47
(0  Reviews) Add Your Review
Product Overview PoE Injector The 802.3at PoE+ Injector (U PoE AT) is designed to power 802.3at PoE+ devices. The U PoE AT delivers up to 30W of PoE+ that can be used to power the Access Point WiFi 6 Long-range (U6 LR), Pro (U6 Pro), and other devices that adhere to the 802.3at PoE+...

2-Pair Powering

Pins 4, 5 (+) and Pins 7, 8 (-)


4-Pair Powering

No


AC Connector

IEC-320 C6


Certification

CE
FCC
IC
UL


Clamping Protection

11V Data
60V Power


Data IN / POE

RJ45 Shielded Socket


Dimensions

93 x 62 x 35 mm


Efficiency

87%


Gigabit LAN Port

Yes


Input Current

0.75A Max.


Inrush Current

<100A peak at 26_


LAN Activity Indicator

No


Line Regulation

≤ 3%


Load Regulation

≤ 5%


Manufacturer code

U-POE-AT


Max. Surge Discharge

1500A (8/20 μs) Power


Model Number

U-POE-AT


No. of Ports Providing PoE

2 x 10/100/1000 (Gigabit) RJ-45


Operating Humidity

10 to 95% noncondensing


Operating Temperature

0°C to 40°C (32°F to 104°F)


Output Ripple

1% Max.


Output Voltage

48V DC @ 0.65A


Peak Pulse Current

36A (10/1000 μs) Data


PoE Support Type

PoE+


Power Supply

Internal AC Power Supply


Rated Voltage

100-240VAC @ 50/60Hz


Remote Reset Capability

No


Reset Button

No


Response Time

<1 ns


Shunt Capacitance

<5 pF data


Storage Temperature

-30ºC to 70ºC


Surge Protection

Difference and Common Mode


Switching Frequency

70 kHz max.


Total Network Ports

2 x 10/100/1000 (Gigabit) RJ-45


Weight

0.156 kg


Add to Cart:
  • Manufactured by: Ubiquiti
  • This product was added to our catalog on .

Product Overview

PoE Injector

The 802.3at PoE+ Injector (U PoE AT) is designed to power 802.3at PoE+ devices. The U PoE AT delivers up to 30W of PoE+ that can be used to power the Access Point WiFi 6 Long-range (U6 LR), Pro (U6 Pro), and other devices that adhere to the 802.3at PoE+ standard. It also provides enhanced protection against electrical surges.

There are currently no product reviews.

Features

• Delivers up to 30W of PoE+.
• Compatible with the U6 LR, U6 Pro, and other 802.3at PoE+ devices.
• Surge and clamping protection.
• AC cable with earth ground.

2-Pair Powering

Pins 4, 5 (+) and Pins 7, 8 (-)


4-Pair Powering

No


AC Connector

IEC-320 C6


Certification

CE
FCC
IC
UL


Clamping Protection

11V Data
60V Power


Data IN / POE

RJ45 Shielded Socket


Dimensions

93 x 62 x 35 mm


Efficiency

87%


Gigabit LAN Port

Yes


Input Current

0.75A Max.


Inrush Current

<100A peak at 26_


LAN Activity Indicator

No


Line Regulation

≤ 3%


Load Regulation

≤ 5%


Manufacturer code

U-POE-AT


Max. Surge Discharge

1500A (8/20 μs) Power


Model Number

U-POE-AT


No. of Ports Providing PoE

2 x 10/100/1000 (Gigabit) RJ-45


Operating Humidity

10 to 95% noncondensing


Operating Temperature

0°C to 40°C (32°F to 104°F)


Output Ripple

1% Max.


Output Voltage

48V DC @ 0.65A


Peak Pulse Current

36A (10/1000 μs) Data


PoE Support Type

PoE+


Power Supply

Internal AC Power Supply


Rated Voltage

100-240VAC @ 50/60Hz


Remote Reset Capability

No


Reset Button

No


Response Time

<1 ns


Shunt Capacitance

<5 pF data


Storage Temperature

-30ºC to 70ºC


Surge Protection

Difference and Common Mode


Switching Frequency

70 kHz max.


Total Network Ports

2 x 10/100/1000 (Gigabit) RJ-45


Weight

0.156 kg
