Noctua NH-U9-DX-4189 4U Intel LGA4189 Cooler
(image for) Noctua NH-U9-DX-4189 4U Intel LGA4189 Cooler
(image for) Noctua NH-U9-DX-4189 4U Intel LGA4189 Cooler
(image for) Noctua NH-U9-DX-4189 4U Intel LGA4189 Cooler
  • In Stock: 0
  • Manufactured by: Noctua

Noctua NH-U9-DX-4189 4U Intel LGA4189 Cooler

£151.19
(0  Reviews) Add Your Review
Noctua DX Series 4U Intel Xeon LGA4189 CPU Cooler Strong performance and 4U compatibility   Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. Based on the proven, 92mm size NH-U9 heatsink and equipped with...
  • Manufactured by: Noctua
  • This product was added to our catalog on .

Noctua DX Series 4U Intel Xeon LGA4189 CPU Cooler

Strong performance and 4U compatibility

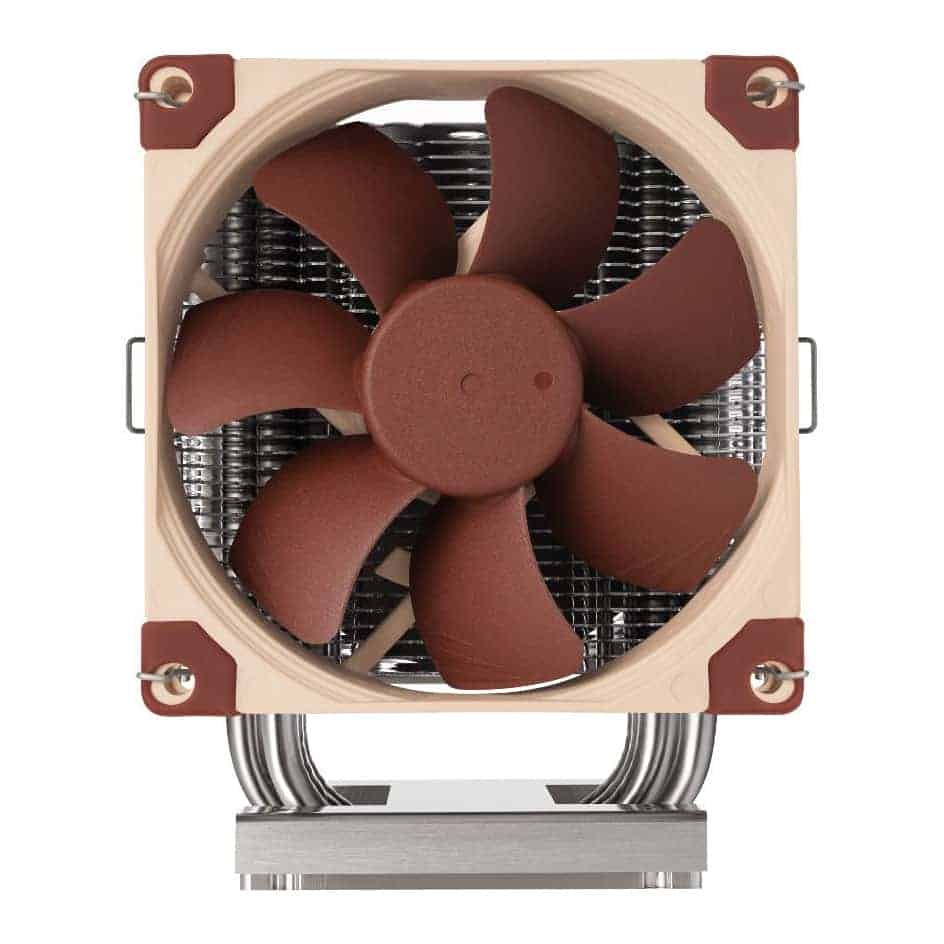

Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. Based on the proven, 92mm size NH-U9 heatsink and equipped with two of Noctua’s award-winning, PWM controlled NF-A9 92mm fans, it combines strong performance with excellent compatibility for 4U systems and other space-restricted applications. The NH-U9’s direction of airflow is perpendicular to the long axis of the LGA4189 socket, so it is ideal for workstation builds where the top PCIe slot must not be blocked and this orientation is required for having the cooler exhausts towards the I/O panel. Topped off with the professional SecuFirm2™ mounting system and pre-applied NT-H1 thermal compound, the NH-U9 DX-4189 forms a complete premium quality package for quietly cooling LGA4189 based Xeon workstations and servers.

Please note: The NH-U9 DX-4189 is a dedicated version for the Intel LGA4189 socket. Due to its customised larger base, it cannot be used on most other sockets and is incompatible with Noctua’s standard mounting kits.
The plastic CPU carrier frame supplied with the cooler is for LGA4189-4 (P4) only. LGA4189-5 (P5) systems use the same mounting mechanism systems but require a different CPU carrier frame. Please contact us at support@noctua.at if you would like to use the cooler on a LGA4189-5 (P5) type system.

LGA4189

Socket Compatibility

Dual Tower

Cooler Form Factor

2 x 92mm

Included Fan Configuration



Custom Designed Cooling

There are currently no product reviews.

Features

6-year Manufacturer’s Warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. True to this legacy, the NH-U9 DX-4189 heatsink is built to last, and like all Noctua fans, the supplied NF-A9 units feature an MTTF rating of more than 150,000 hours. The entire package comes with a full 6-year manufacturer’s warranty.

Enlarged Contact Surface

At 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel’s LGA4189-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.

LGA4189-4 (P4) CPU Carrier Frame

The scope of delivery includes an LGA4189-4 (P4) type CPU carrier frame for Intel Ice Lake-SP and Ice Lake-64L based processors (Whitley platform). However, the heatsink’s SecuFirm2 mounting system also supports P5 type LGA4189 sockets (LGA4189-5) for Intel Cooper Lake based processors. (CPU carrier frames for LGA4189-5 are available on request via support@noctua.at).



DX series for Intel Xeon, Customised for LGA4189

Dual NF-A9 PWM Fans

The NH-U9 DX-4189 is equipped with two of Noctua’s award-winning NF-A9 92mm fans. This push/pull dual fan configuration makes it possible to achieve a level of cooling performance that is remarkable for such a compact cooler and comes close to the bigger NH-U12S DX-4189. The supplied y-cable makes it possible to power and control both fans simultaneously from a single motherboard fan header. First introduced in 2008, Noctua’s DX line CPU coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for Intel Xeon processors. Thanks to their superior acoustic efficiency, they are ideal for workstations and servers that run in noise sensitive environments (e.g. audio/video production, content creation, engineering, etc.).

SecuFirm2 Mounting System with Standard Intel Parts

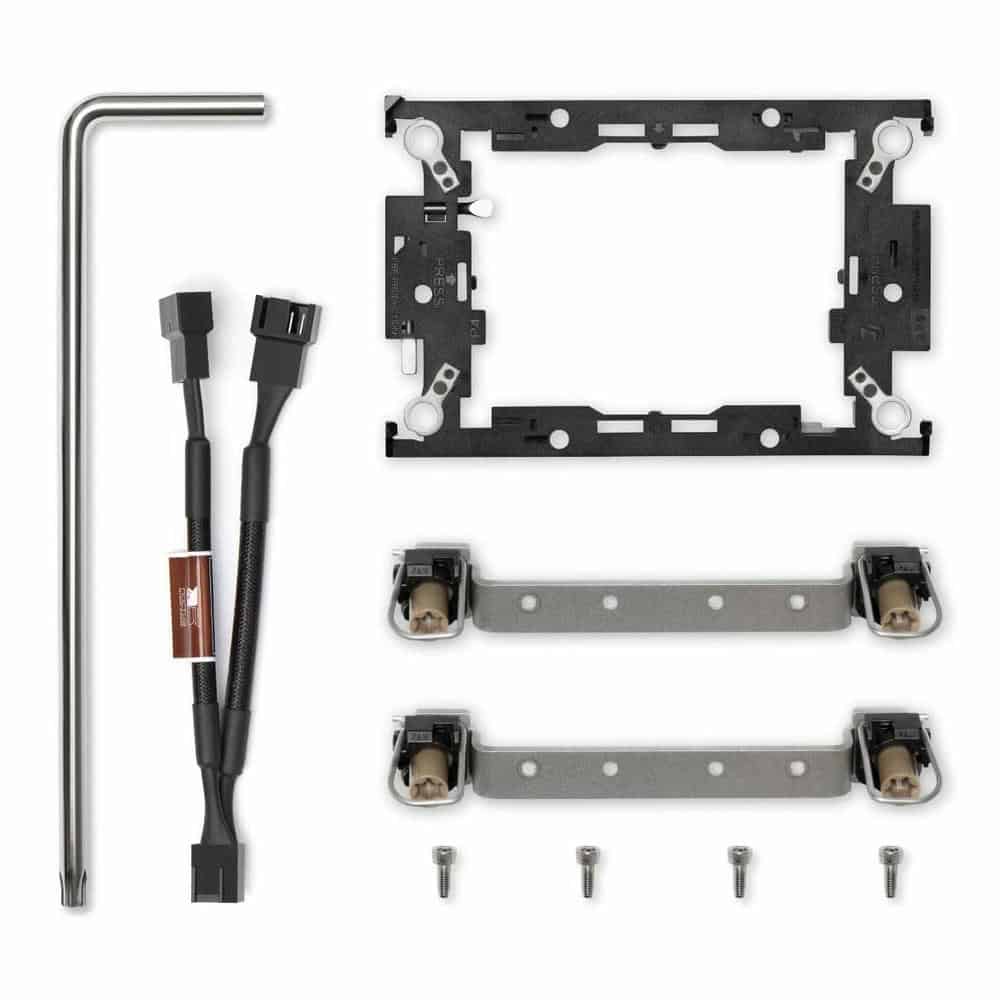

Integrating standard Intel parts such as the anti-tilt mechanism, Torx T30 PEEK nuts and LGA4189-4 (P4) CPU carrier frame, the cooler’s mounting system is fully compliant with Intel’s installation guidelines and provides a familiar mounting procedure for experienced LGA4189 users. A Torx T30 mounting tool is included.
