Thermaltake 140mm SWAFAN GT14 PWM Case Fan with 3 Changeable Blades
(image for) Thermaltake 140mm SWAFAN GT14 PWM Case Fan with 3 Changeable Blades
(image for) Thermaltake 140mm SWAFAN GT14 PWM Case Fan with 3 Changeable Blades
(image for) Thermaltake 140mm SWAFAN GT14 PWM Case Fan with 3 Changeable Blades
(image for) Thermaltake 140mm SWAFAN GT14 PWM Case Fan with 3 Changeable Blades
  • In Stock: 10
  • Manufactured by: Thermaltake

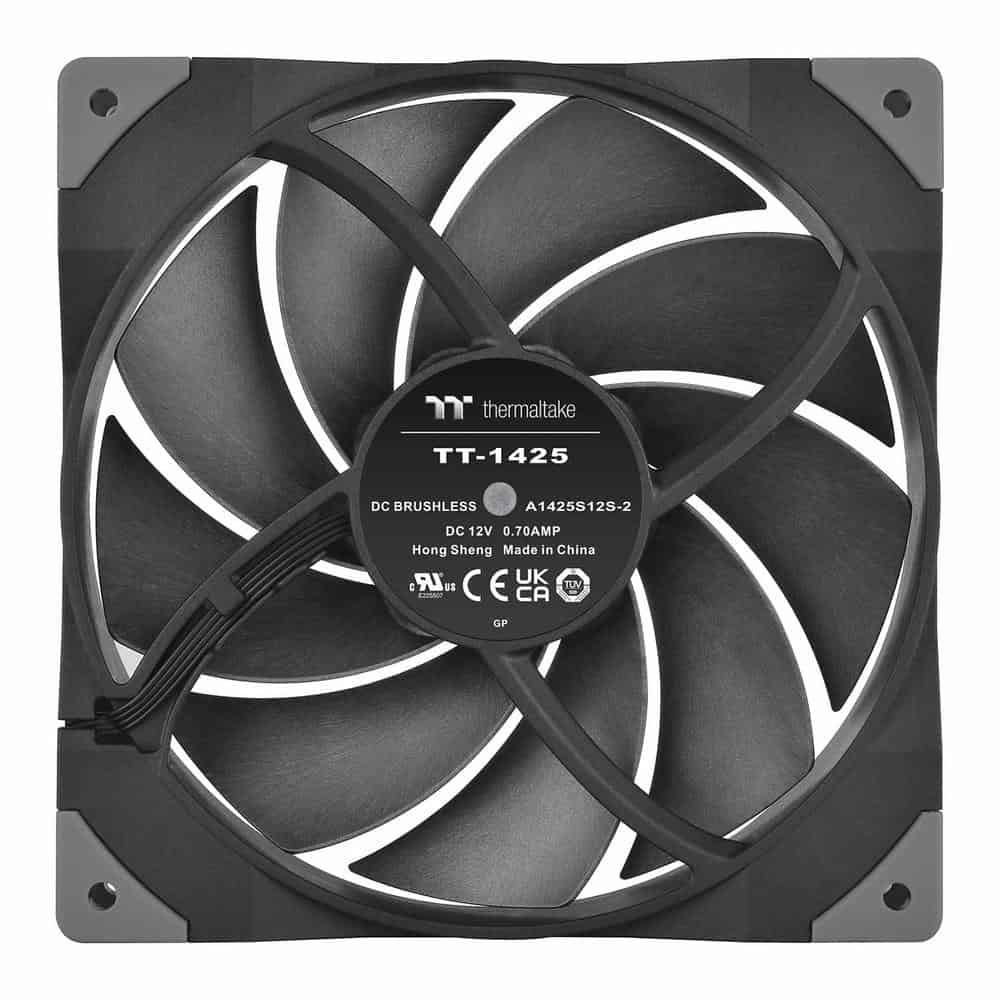

Thermaltake 140mm SWAFAN GT14 PWM Case Fan with 3 Changeable Blades

$73.65
SWAFAN GT14 140mm PC Cooling Fan from Thermaltake High Performance Cooling for Many Scenarios The SWAFAN GT14 has three types of fan blades, the pre-installed high static pressure fan blade, the high airflow fan blade, and the reverse high airflow fan blade. With all the options in your hands,...

Air Pressure

Flow 2.76
Pressure 3.33
Reverse 2.48 mm H²O


Airflow

Flow 109
Pressure 100
Reverse 107 CFM


Bearing Type

Hydraulic Bearing


Connectors

1 x 9-pin USB 2.0 Header Connector


Edition

SWAFAN GT14


Fan Blades

9


Fan Colour

Black


Fan Depth

25 mm


Fan Diameter

140mm


Fan Fixing

Screw Fixing


Fan Speed

500 - 2000 rpm


GTIN

4713227536387


Includes

1 x 140mm Fan/s


LED

Yes


Manual Speed Controller

No


Manufacturer code

CL-F157-PL14BL-A


Model Number

CL-F157-PL14BL-A


MTBF

40,000 Hours


PWM

Yes


Sound Level (dBA)

Flow 32.7
Pressure 34.3
Reverse 36.1 dBA


Add to Cart:
  • Manufactured by: Thermaltake
  • This product was added to our catalog on .

SWAFAN GT14 140mm PC Cooling Fan from Thermaltake

High Performance Cooling for Many Scenarios

The SWAFAN GT14 has three types of fan blades, the pre-installed high static pressure fan blade, the high airflow fan blade, and the reverse high airflow fan blade. With all the options in your hands, you can swap your fan blades to accommodate different PC-building scenarios.



3 Types of Detachable Fan Blades For You to SWAP

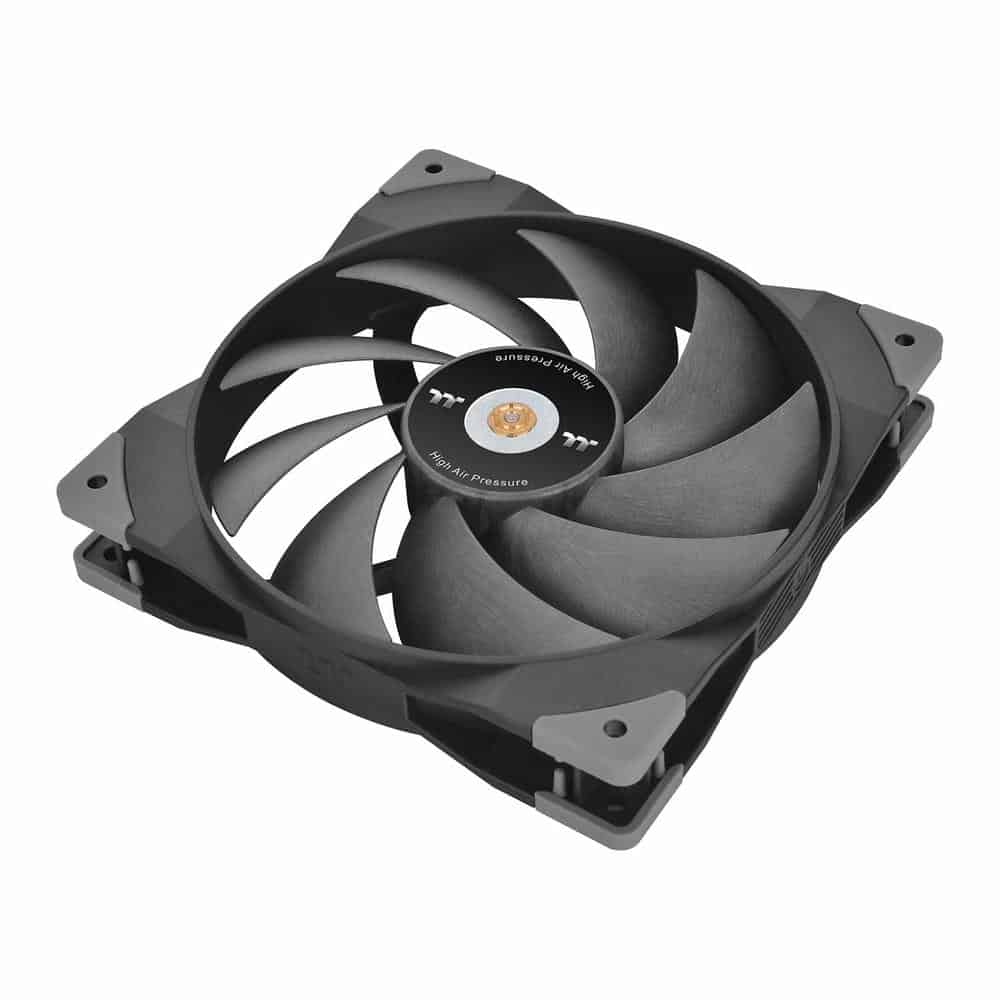

High Static Pressure

The High Static Pressure Fan Blade is pre-installed onto the fan frame for users with instant demand for high static pressure fans. These fan blades are tuned to produce a static pressure of 3.33 mm-H2O with 100 CFM airflow under a 34.3 dB-A noise levels.

High Air Flow

An additional fan blade in the box is the High Air Flow Fan Blade. You can switch out the high static pressure fan blade with the High Air Flow Fan Blade and get a fan with 109 CFM airflow while producing 2.76 mm-H2O static pressure under a 32.7 dB-A noise level.

Reverse High Air Flow

The third type of fan blade in the box is the Reverse High Air Flow Fan Blade. Even with reversed airflow direction, you can still get a static pressure of 2.48 mm-H2O with 107 CFM air flow under 36.1 dB-A noise level.



Less Cables, Less Mess

Daisy Chain Design

Incorporates the new cable-integrated daisy-chain design allows the fans to be directly connected, so it minimises demands of 3-pin PWM ports on your motherboard and shortens the cable length between the fans. Thermaltake also included two 900mm cables for you to easily manage your cables while assembling your build.



Keeps Noise Levels to a Minimum

Anti-Vibration Mounting System

The anti-vibration rubber pad that can dampen the fan's vibration, allowing the fan to spin at higher levels without generating high noise levels. The rubber pads are designed to cover a large surface of all corners, maintaining low noise levels when in operation.

There are currently no product reviews.

Features

Features section not found.

Air Pressure

Flow 2.76
Pressure 3.33
Reverse 2.48 mm H²O


Airflow

Flow 109
Pressure 100
Reverse 107 CFM


Bearing Type

Hydraulic Bearing


Connectors

1 x 9-pin USB 2.0 Header Connector


Edition

SWAFAN GT14


Fan Blades

9


Fan Colour

Black


Fan Depth

25 mm


Fan Diameter

140mm


Fan Fixing

Screw Fixing


Fan Speed

500 - 2000 rpm


GTIN

4713227536387


Includes

1 x 140mm Fan/s


LED

Yes


Manual Speed Controller

No


Manufacturer code

CL-F157-PL14BL-A


Model Number

CL-F157-PL14BL-A


MTBF

40,000 Hours


PWM

Yes


Sound Level (dBA)

Flow 32.7
Pressure 34.3
Reverse 36.1 dBA
