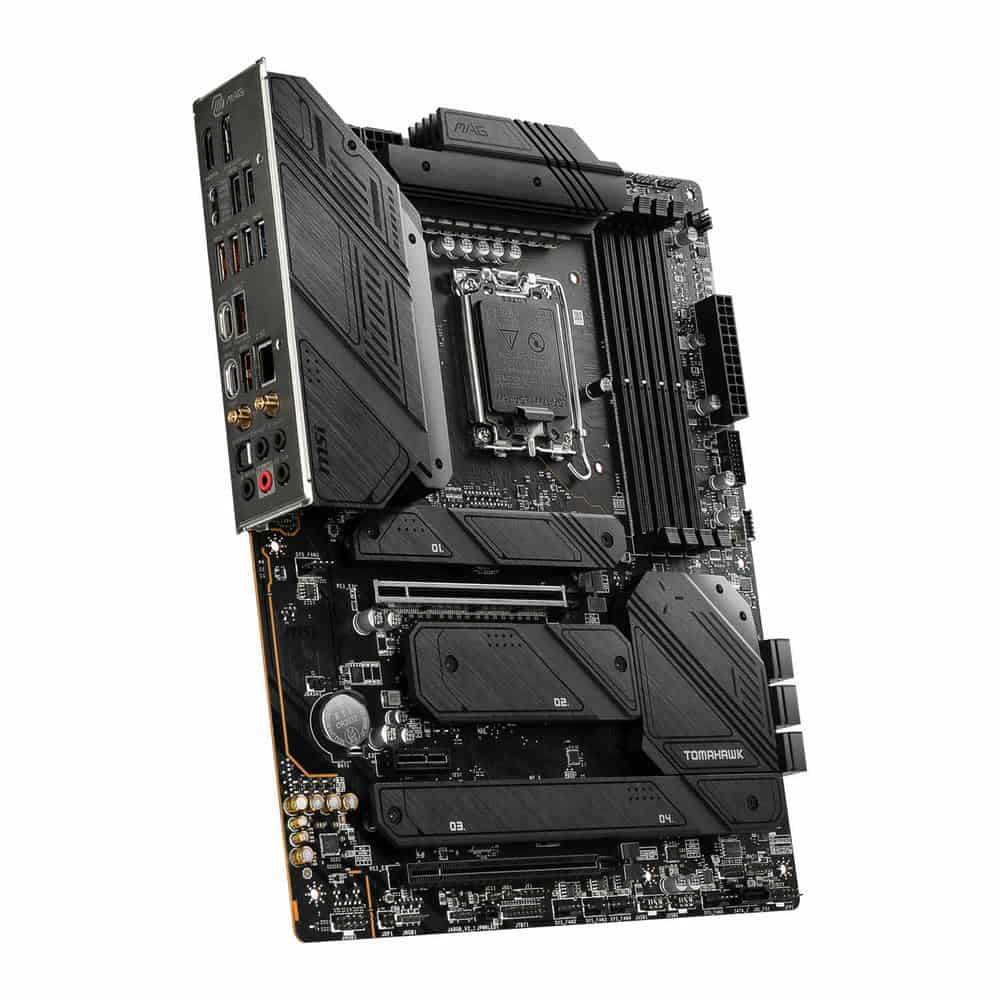

MSI Intel MAG Z790 TOMAHAWK WIFI DDR5 ATX Motherboard

Unite As One

 Meet the Z790 TOMAHAWK WiFi, designed and constructed to draw the full potential from the latest 13th Generation Raptor-Lake CPUs, by combining durability, value and stunning aesthetics with a military-inspired twist. Boasting support for DDR5 memory, an enhanced 16+1+1 duet rail power system, lightning-fast PCIe 5.0 technology, Gen4 M.2 storage and a premium thermal solution consisting of extended heatsink designs, M.2 Shield Frozr and high-end thermal pads. Combined these features allow you to push the boundaries of modern performance. Build something beautiful with MSI.

Intel Z790

Chipset

LGA 1700

CPU Socket

12th/13th Gen Intel® Core™ Processors

Compatible CPU

ATX

Form Factor

Outstanding Cooling Solution

7W/mK MOSFET Thermal Pads

M.2 Shield Frozr

Pump Fan Support

Extended Heatsink

High-Speed Transmission

2.5G LAN

WIFI
6E

PCIE 5.0
Slots

Memory Boost

A Stable Cornerstone for Your System

Steel PCIe
armor

16+1+1 Phases
Duet Rail Power

Server Grade
PCB

Core
Boost

Massive Cooling Potential

1. Extended Heatsinks

Large extended heatsinks increase the surface area of heat dissipation, ensuring even high-end processors can run at full speed.

2. M.2 Shield Frozr

M.2 thermal solutions keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.

3. Heavy Plated VRM Heatsink

This VRM heatsink, covers the upper MOS and helps to increase heat dissipation.

4. 7W/mK Thermal Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensures all cores run at their maximum performance.

Aggressive Power Design

16 Phase

Core 90A Power Stage

1 Phase

GT Power

1 Phase

AUX Power

16+1+1 DUET RAIL POWER SYSTEM

Unleash and sustain the maximum performance with a premium VRM design built with a total of 16+1+1 Duet Rail Power System(DRPS). Combining dual power connectors and Power Stage, MAG Z790 TOMAHAWK WIFI is ready for the challenge of high-end processors.

Meet The Latest Generation

LIGHTNING GEN 5 PCI-E

Say hello to double the speeds of the previous generation, PCIe 5.0 brings an x16 interface capable of reaching speeds of up to 128 GB/s.

SMT PCIe 5.0 Slot

The advanced surface mount technology (SMT) PCIe slot reduces interference and electrical noise to fully support the PCIe 5.0 signal.

Maximise Your Storage Capabilities

Fast and future ready storage

MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

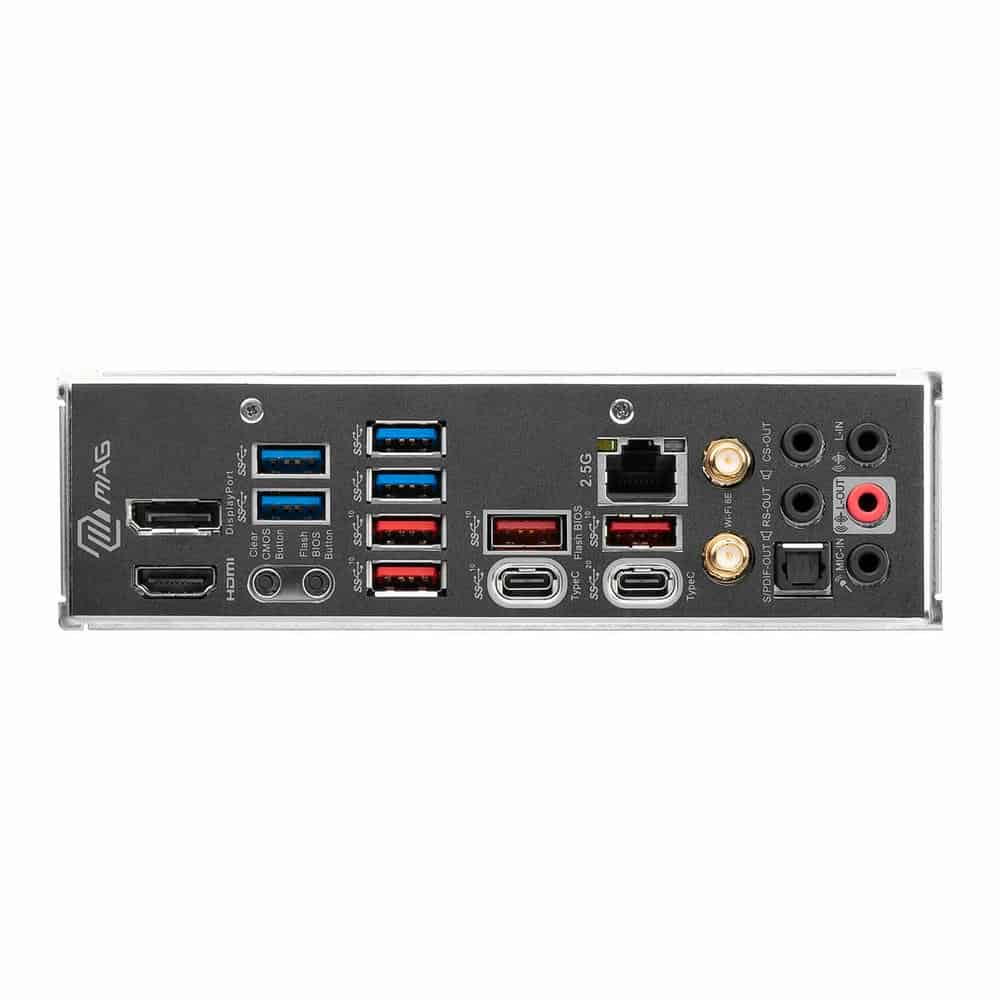

Fully Comprehensive I/O Panel

Rear:

1: DisplayPort 1.4
2: USB 3.2 Gen 1 5Gbps Type-A
3: USB 3.2 Gen 2 10Gbps Type-A
4: 2.5G LAN Port
5: HD Audio Connectors
6: HDMI™ 2.1 Port
7: Clear CMOS Button
8: Flash BIOS Button
9: USB 3.2 Gen 2 10Gbps Type-C
10: USB 3.2 Gen 2x2 20Gbps Type-C
11: Wi-Fi / Bluetooth Antenna
12: Optical S/PDIF OUT
