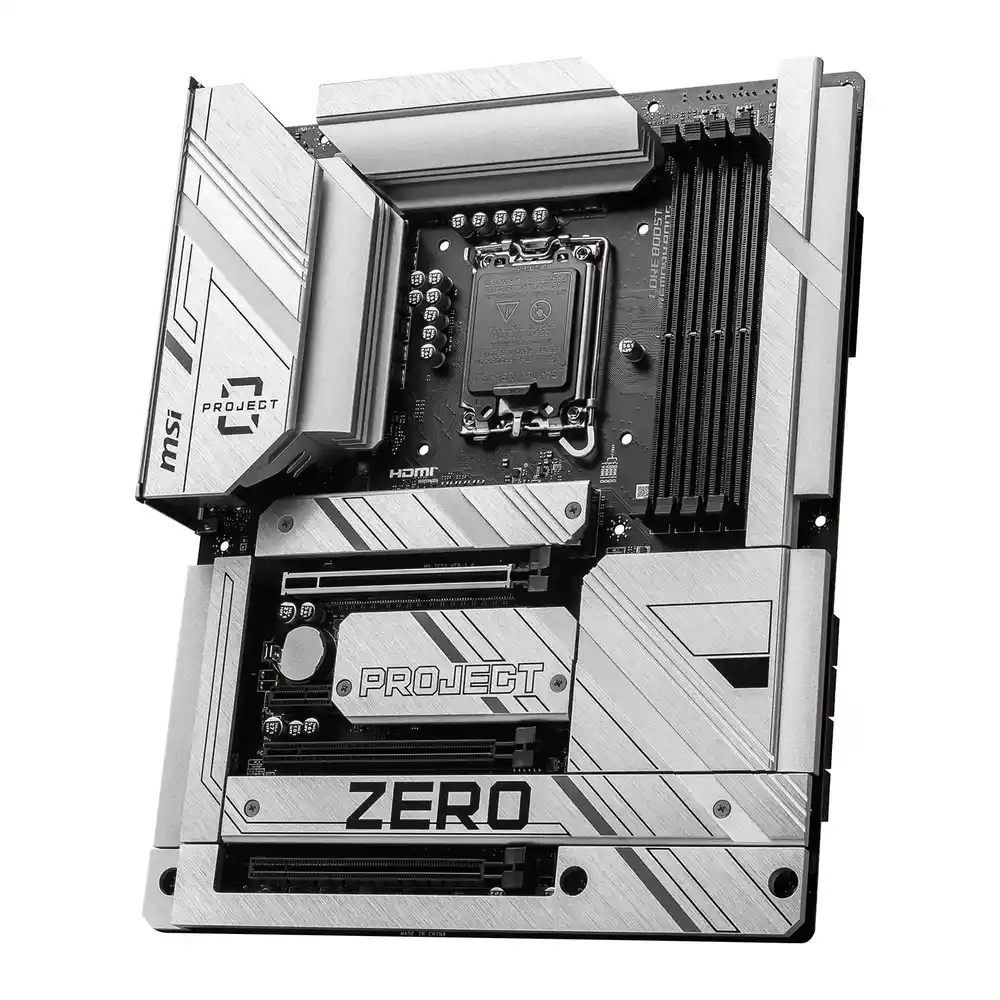

MSI Intel Z790 PROJECT ZERO DDR5 ATX Motherboard

MSI Z790 PROJECT ZERO LGA 1700 ATX Motherboard

Absolute Simplicity Meet the MSI Z790 PROJECT ZERO ATX motherboard, a performance powerhouse with a twist, the PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management by having all of your connectors located on the back-side of the motherboard, resulting in an overall neater, more aesthetically pleasing system. Crafte

d to support the latest Intel processors the Z790 PROJECT ZERO is packed with the latest features including support for DDR5 7200+(OC) memory, an enhanced power design, lightning-fast PCIe 5.0 technology, Gen4 storage, WiFi 7 and a premium thermal solution consisting of an enlarged heatsink and M.2 Shield Frozr technology, combined they offer optimised passive cooling and powerful performance, allowing you to continue to push your system to all new heights.

Note: Please be sure to check MSI's Compatibility list to ensure your case is compatible Here

Intel Z790

Chipset

LGA 1700

CPU Socket

14th/13th/12th Gen Intel® Core™ Processors

Compatible CPU

ATX

Form Factor

Outstanding Cooling Solution

7W/mK MOSFET Thermal Pads

M.2 Shield
Frozr

Extended
Heatsink

High-Speed Transmission

2.5G LAN

WIFI
7

PCIE 5.0
Slots

Memory
Boost

Lightning USB
20G

A Stable Cornerstone for Your System

6-Layer
PCB

back-connect
Design

Pump Fan
Support

Massive Cooling Potential

1. Extended Heatsinks

Large extended heatsinks increase the surface area of heat dissipation, ensuring even high-end processors can run at full speed.

2. M.2 Shield Frozr

Keeps M.2 SSDs safe while preventing throttling, making them run faster.

3. Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps with overall heat dissipation.

4. 7W/mK Thermal Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensures all cores run at their maximum performance.

Aggressive VRM Design

14 Phase

CORE POWER DRMOS/55A

1 Phase

GT Power

1 Phase

AUX Power

14+1+1 DUET RAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design built with a digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, Z790 PROJECT ZERO is ready to sustain heavy loads.

Back-Connect Design

A Unique Addition

The Z790 PROJECT ZERO features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance.

Meet The Latest Generation

LIGHTNING GEN 5 PCI-E

Say hello to double the speeds of the previous generation, PCIe 5.0 brings an x16 interface capable of reaching speeds of up to 128 GB/s.

SMT PCIe 5.0 Slot

The advanced surface mount technology (SMT) PCIe slot reduces interference and electrical noise to fully support the PCIe 5.0 signal.

Maximise Your Storage Capabilities

Fast and future ready storage

MSI PROJECT ZERO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Fully Comprehensive I/O Panel

Rear: 1: Mouse / Keyboard
2: DisplayPort 1.4
3: USB 2.0
4: 2.5G LAN
5: Wi-Fi / Bluetooth Antenna
6: HD Audio Connectors
7: Flash Bios Button
8: USB 2.0
9: HDMI™ 2.1 Port
10: USB 5Gbps Type-A
11: USB 20Gbps Type-C
12: USB 10Gbps Type-A
