Meet The Pinnacle of Performance
The ROG Maximus Z790 Apex Encore boasts a sleek all-black design, robust appearance, upgraded power solution and an onboard PCIe® 5.0 M.2 slot for lightning-fast storage. Meanwhile, support for PCIE 5.0 components, WiFi 7 connectivity, ROG DIMM.2 card for additional storage and the ROG Memory Fan Kit offers active cooling to let tinkerers push their performance to the limit. Support for Intel® Core™ 14th generation processors lets users set new benchmarks for the wealth of activities that demand peak performance. This motherboard is the ultimate choice for enthusiasts and overclockers seeking style and power in their gaming setup.
Intel Z790
Chipset
LGA 1700
CPU Socket
14th/13th/12th Gen Intel
Compatible CPU
ATX
Form Factor
ROG Overclocking Technologies
Tried and tested OC features offer extensive control over system performance for seasoned veterans and new recruits alike. Leverage onboard intelligence to automatically adapt CPU performance, or get a headstart on manual tuning and then utilize advanced tools and utilities to stay on the pulse and push boundaries.
The Overclockers Toolkit
The ROG Overclocker’s Toolkit is a powerful set of hardware-level controls to enhance your overclocking experience. Some are quick and easy time savers, while others offer masterful functionality to help you smash benchmarks and break records.
SAFE BOOT BUTTON
Instantly reset the PC and boot directly into Safe mode.
BCLK BUTTONS
Adjust the BCLK frequency to improve system performance.
PROBEIT
Includes twelve integrated measurement points for advanced tuning.
RETRY BUTTON
Instantly initiates a hard reset with just a press.
SLOW MODE SWITCH
Reduces the CPU ratio to 8X to keep the system stable during setup for extreme overclocking.
PAUSE SWITCH
Pause the system and fine-tune OC parameters mid-benchmark.
RSVD SWITCH
Helps the system boot under extreme temperatures (≤ -120°C)
LN2 MODE
Jumper to enable special options and functions for liquid-nitrogen (LN2) overclocking.
BIOS SWITCH
Switches between BIOS 1 and 2.
Crafted For Performance
Today's CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilising teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
24+0+2 Power Stages
The VRM features 24+0+2 power stages, each rated to handle up to 105 amps
8+8 PIN ProCool II Power Connectors
Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V Power line.
MICROFINE ALLOY CHOKES
Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
SMD CAPACITORS
Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
Get the most from your memory
Comprehensive memory tuning options are the cornerstone of ROG motherboards. With the ROG Maximus Z790 Apex Encore, you can extract all of the potential out of your DDR5 modules, regardless of if they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
DDR5 Domination
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven as far as 8 GT/s on the Maximus Z790 Apex Encore, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.
ROG Memory Fan Kit
The ROG Maximus Z790 Apex Encore is also equipped with the ROG Memory Fan Kit – a cooling solution to solidify DDR5 stability and unleash memory overclocking. With the ROG Memory Fan Kit, your DDR5 modules can push the boundaries and reach overclocking speeds of 8400+ MT/s. Experience superior cooling performance and unlock the full potential of your memory with ease.
1. VRM HEATSINK ARRAY
VRM heatsinks on the MOSFETs and chokes are connected by an embedded heatpipe to increase mass and surface area for dissipation.
2. M.2 heatsink and backplates
Three onboard M.2 slots are thoroughly cooled with heatsinks and backplates for maximum cooling performance.
3. ROG DIMM.2 CARD HEATSINK
Two additional M.2 slots are kept cool with the DIMM.2 card's hefty heatsinks.
4. EXTENDED VRM AND M.2 HEATSINK
An extended heatsink helps further cool the VRM along with an M.2 drive.
Multiple temperature sources
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.
4-pin fan headers
In addition to the pair of CPU fan headers, the Maximus Z790 Extreme features two chassis and two radiator headers, and each supports auto-detection of PWM or DC fans.
AIO Pump Header
A dedicated PWM/DC header for self-contained water-cooling setups.
Water Pump+
A dedicated header can supply over 3 amps to a high-performance PWM or DC water pumps.
Water in/out
A dedicated header enables monitoring of temperatures at the input/output points of any component.
Water Flow
A dedicated header enables constant monitoring of flow rate throughout the entire loop.
PCIe 5.0 Ready
Fully embracing the new standard, the ROG Maximus Z790 Apex Encore offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
EXPANSION SLOTS
Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the PCIe Slot Q-Release button.
ROG DIMM.2
The ROG DIMM.2 module allows you to easily mount two M.2 drives next to the memory slots, where its large heatsinks convect directly into the path of chassis airflow for optimal temperatures.
THREE ONBOARD M.2 SLOTS
The ROG Maximus Z790 Apex Encore features three onboard M.2 slots, one of which is PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces.
WIFI 7
Next-gen WiFi 7* chipset introduces all-new ultrawide 320 MHz channel bandwidth in the 6 GHz band and 4096 QAM, delivering up to 2.4X ultra-fast WiFi speeds**. The revolutionary Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
2.5G ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
ARMOURY CRATE
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
SONIC STUDIO III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
AURA Sync
Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

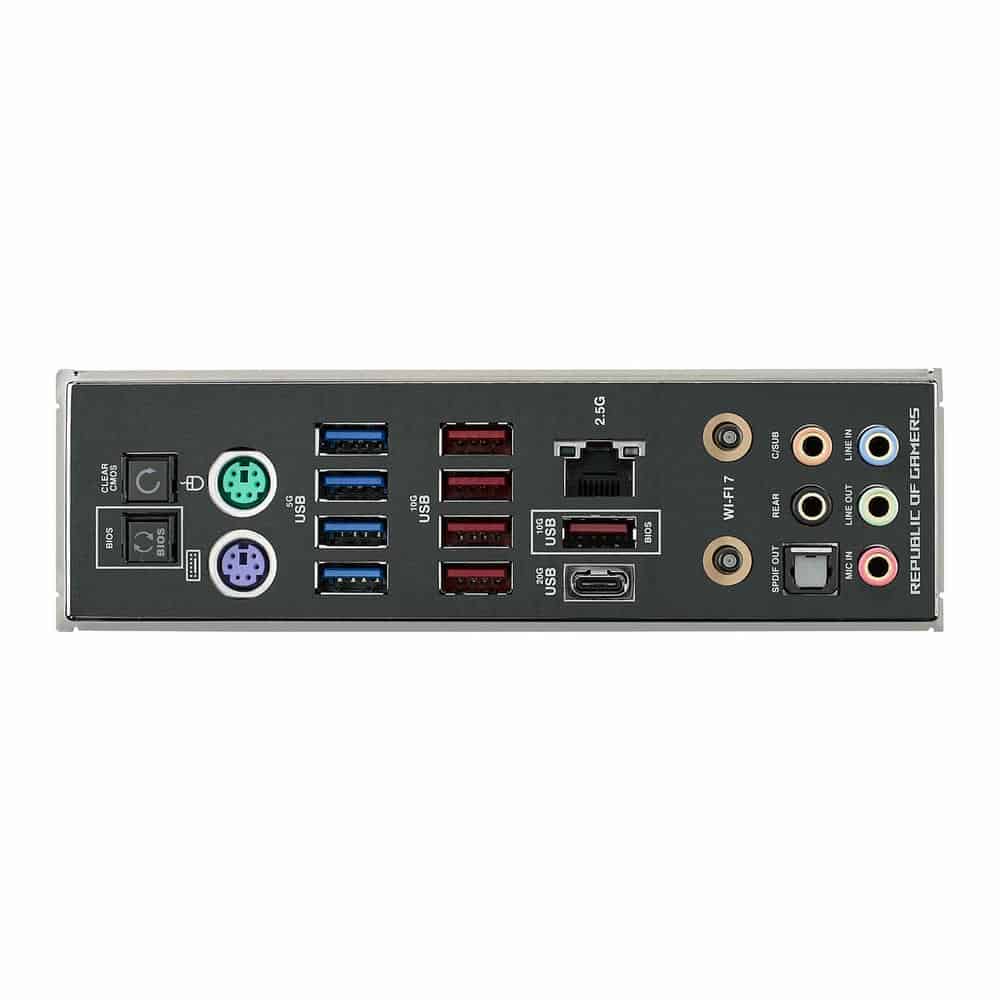

1: BIOS FlashBack™ Button2: Clear CMOS Button3: PS/2 Keyboard Port4: PS/2 Mouse Port5: 4 x USB 3.2 Gen 1 Ports (4 x Type-A)6: 5 x USB 3.2 Gen 2 Ports (5 x Type-A) 7: INTEL 2.5G ETHERNET Port 8: 1 x USB 3.2 Gen 2x2 Port9: Wi-Fi 710: Optical S/PDIF Out Port11: 5 x Gold-plated Audio Jacks12: 1 X USB 3.2 GEN 2X2 Connector13: 4 x SATA 6Gb/s13: 1 x Thunderbolt™ (USB 4) Header
