ASUS PRIME Z790M-PLUS D4 DDR4 PCIe 5.0 MicroATX Open Box Motherboard

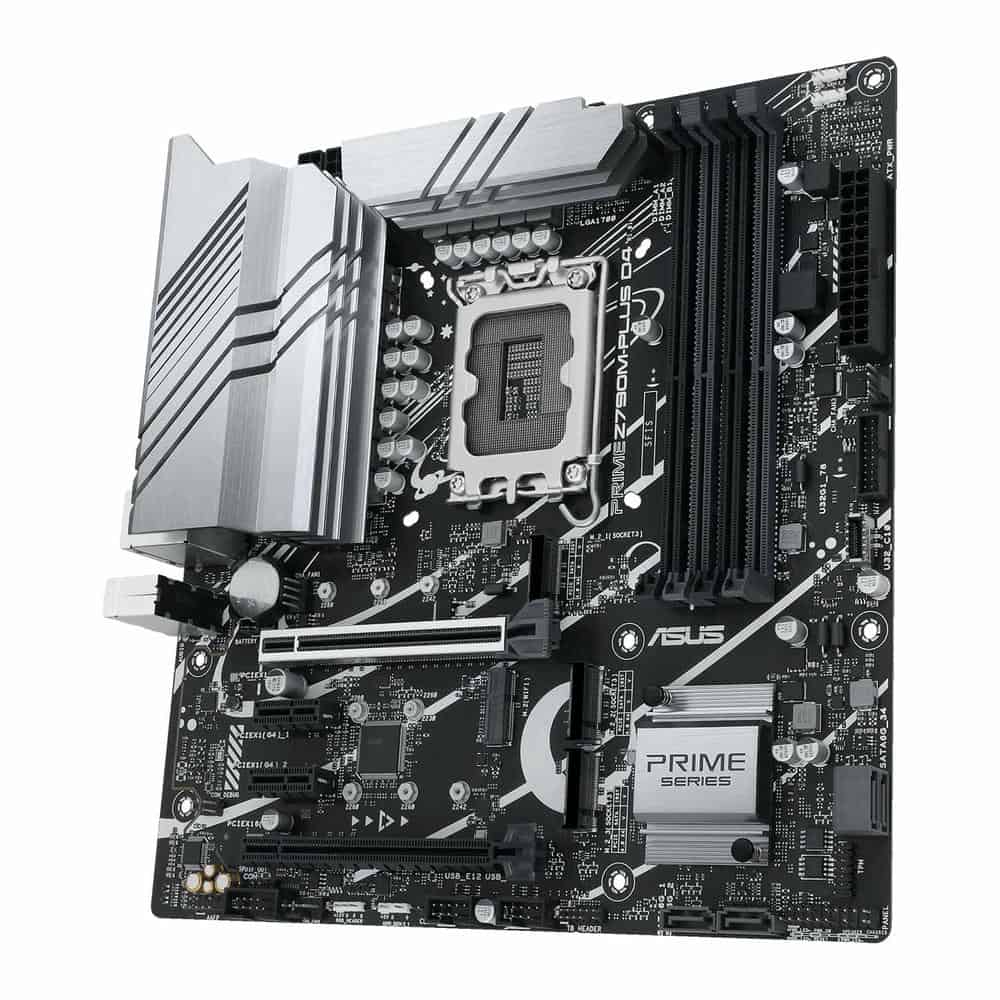

(image for) ASUS PRIME Z790M-PLUS D4 DDR4 PCIe 5.0 MicroATX Open Box Motherboard
(image for) ASUS PRIME Z790M-PLUS D4 DDR4 PCIe 5.0 MicroATX Open Box Motherboard
(image for) ASUS PRIME Z790M-PLUS D4 DDR4 PCIe 5.0 MicroATX Open Box Motherboard
  • In Stock:  10

ASUS PRIME Z790M-PLUS D4 DDR4 PCIe 5.0 MicroATX Open Box Motherboard

£331.19
(0  Reviews) Add Your Review
ASUS PRIME Z790M-PLUS D4 DDR4 PCIe 5.0 MicroATX Open Box MotherboardCore SpecificationsEditionPRIME Z790M-PLUS D4Form FactorMicroATXCPU Socket1700ChipsetIntel Z790RAM Memory SupportMemory TypeDDR4Memory ChannelDual (2)Memory Type (ECC)Non-ECCMemory Type (R/U)UDIMM (Unbuffered)Memory Speed (Mhz)DDR4...
Add to Cart:
  • Manufactured by: ASUS
  • This product was added to our catalog on Thursday 30 November, 2034.

ASUS PRIME Z790M-PLUS D4 DDR4 PCIe 5.0 MicroATX Open Box Motherboard

Core Specifications
EditionPRIME Z790M-PLUS D4
Form FactorMicroATX
CPU Socket1700
ChipsetIntel Z790
RAM Memory Support
Memory TypeDDR4
Memory ChannelDual (2)
Memory Type (ECC)Non-ECC
Memory Type (R/U)UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4700(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5066(OC)
  • DDR4 - 5133(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity128GB (4x32GB)
Audio
Audio7.1 Channel HD Audio
Graphics Support
Primary GPU InterfacePCIe 5.0 (x16)
NVIDIA SLI SupportN/A
AMD CrossFire SupportN/A
Integrated GraphicsRequires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA SupportSATA3
RAID Support viaRAID 0/1/10/5 (Intel RSTe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 3 x M.2 Connector
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Thunderbolt header
  • 1 x TPM Header (14-1 pin)
External Connectivity
Network Interface TypeWired Gigabit LAN (10/100/1000)
Network Chip/Modules1 x Gigabit LAN
Rear I/O Connectors
  • 1 x 7.1 Audio I/O
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water CooledNo
CoolingPassive Heatsinks
QPI SpeedN/A
Board Dimensions244 x 244 mm
