Business Elegance Redefined

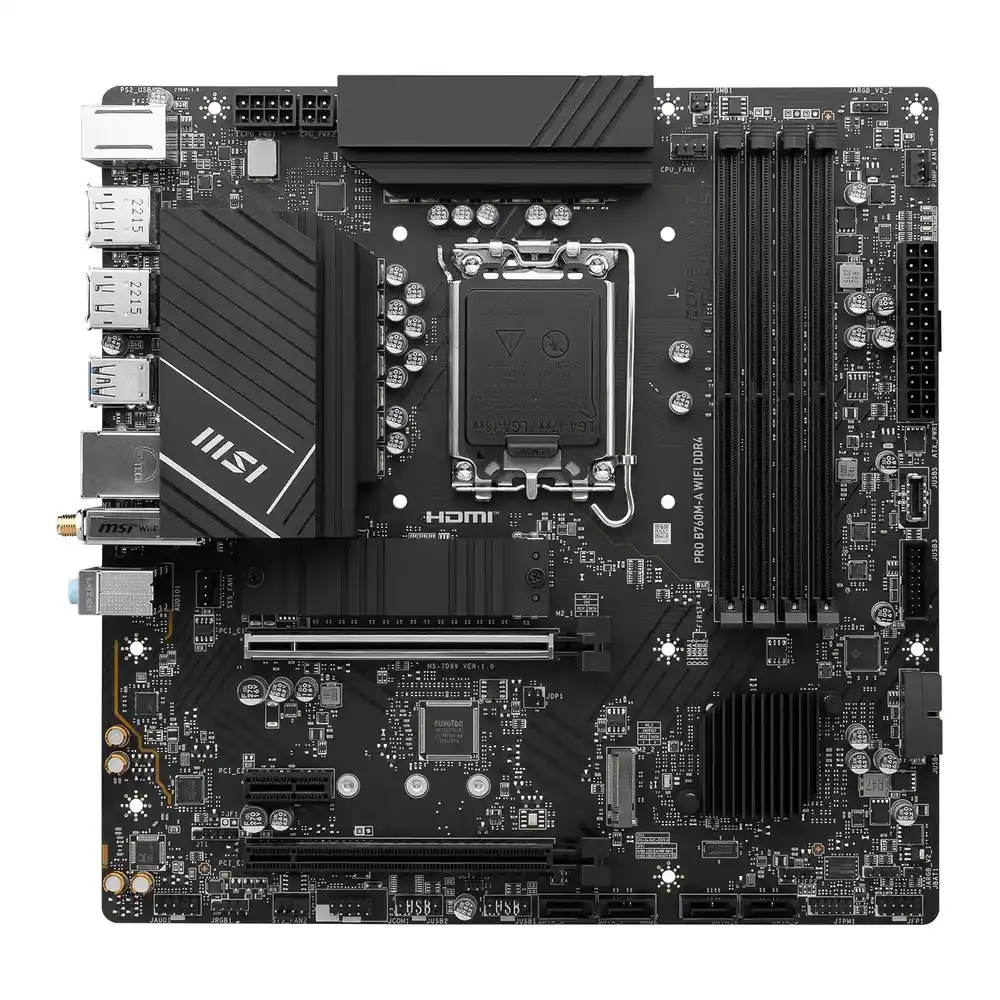

Meet the PRO B760M-A WIFI DDR4, here to support the very latest 13th Generation Intel processors. Boasting the new Intel 1700 LGA, the PRO B760M-A WIFI DDR4 is perfect for both daily users and professionals from all walks of life and is filled with the latest technologies including PCIe 4.0, DDR4 support, expansive storage options with 2x M.2 slots (PCIe 4.0 x4), Core & Memory boosts, M.2 Shield Frozr and chipset heatsinks and a fully comprehensive rear I/O. These features combined deliver an efficient and productive experience, optimised for professional workflows. If your looking to take your productivity to the next level, do it with MSI PRO series motherboards.
Intel B760
Chipset
LGA 1700
CPU Socket
12th/13th Gen Intel® Core™ Processors
Compatible CPU
M-ATX
Form Factor
Memory Boost
Lightning Gen 4
M.2 Shield Frozr
2.5G Network Solution
Extendedheatsinks
Wifi6E
1. Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
2. M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
3. Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
4. 7W/mK Thermal Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
5. Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
12+1+1 POWER DESIGNUnleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI PRO Series motherboards are ready to sustain heavy daily work.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
MSI Steel ArmorSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Fast and future ready storage
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
Rear:
1: Keyboard / Mouse2: DisplayPort3: USB 3.2 Gen 1 5Gbps (Type-A)4: 2.5G LAN5: Wi-Fi / Bluetooth6: Audio Connectors7: USB 2.08: HDMI™9: USB 3.2 Gen 2 10Gbps (Type-A)
