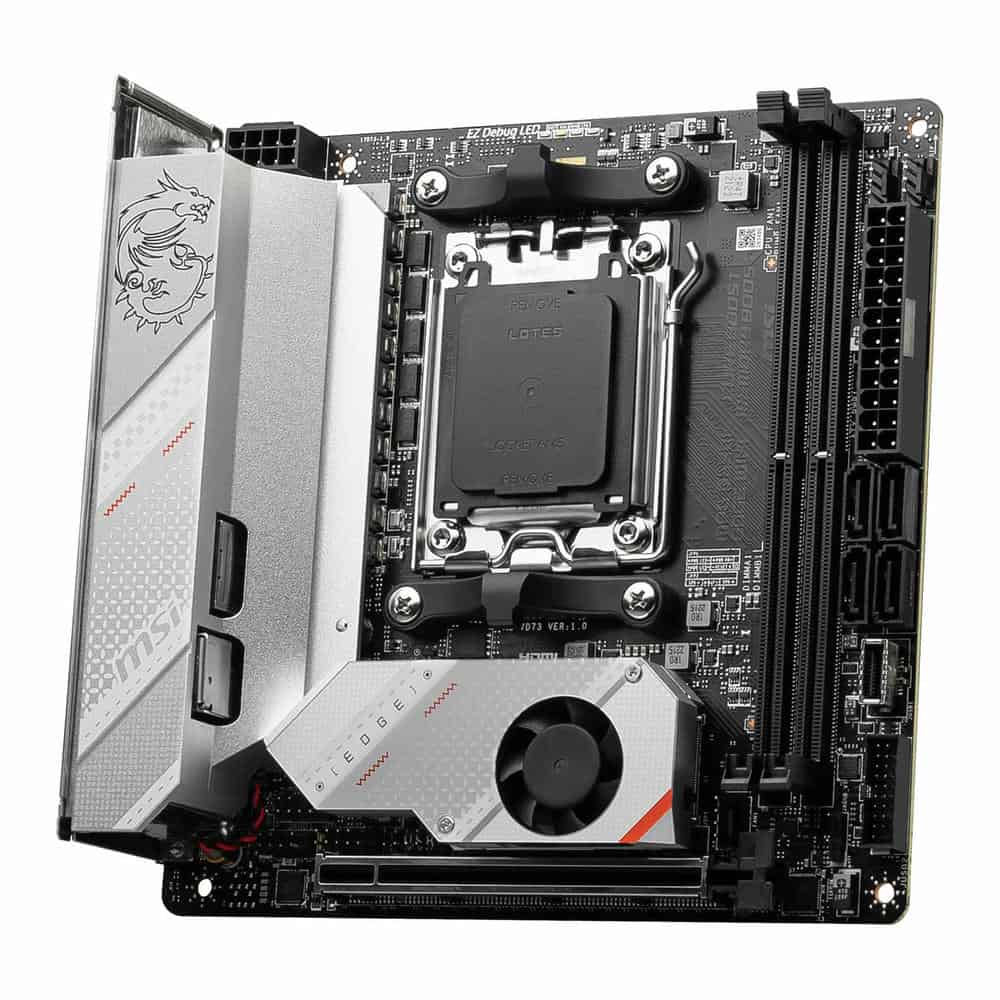

MSI AMD B650I EDGE WIFI AM5 PCIe4 DDR5 Mini-ITX Motherboard AMD EXPO

MSI MPG B650I EDGE WIFI AM5 m-ITX Motherboard

Ready For the 7000 Series

The MPG B650I EDGE WIFI employs a stunning silver and white colour scheme with RGB lighting showcasing a lighter personality against the dark of the carbon whilst ensuring reliable, robust performance delivery in a minute form factor. Developed to unlock the full gaming potential of the AMD B650 chipset and brand-new 7000 series processors by combining elite hardware and premium durability, the MEG B650I EDGE WIFI boasts, an enhanced 8+2+1 phase aggressive power design, a maximum of 2x M.2 connectors for impressive storage (2x Gen4), an outstanding cooling solution including, extended heatsinks, high-end thermal pads & M.2 Shield Frozr technology. Lightning Gen4 PCIe, DDR5 memory, WiFi 6E connectivity and a D.I.Y friendly design ensures extraordinary performance and style. MSI MPG series defines the future of gaming fashion.

AMD B650

Chipset

AM5

CPU Socket

AMD Ryzen™ 7000 Series

Compatible CPU

m-ITX

Form Factor

Outstanding Cooling Solution

Extended
Heatsinks

M.2
Shield Frozr

7W/mK MOSFET Thermal Pads

Pump Fan
Support

High-Speed Transmission

2.5G LAN

WIFI
6E

PCIE 4.0
Slots

DDR5
Memory Support

Lightning
USB 20G

Front USB Type-C

A Stable Cornerstone for Your System

Steel PCIe
armor

preinstalled
IO Shield

8+2+1 Phases
VRM Power

10 Layer
PCB

EZ DEBUG
LED

BIOS Flashback
Button

Massive Cooling Potential

1. Extended Heatsinks

Large extended heatsinks increase the surface area of heat dissipation, ensuring even high-end processors can run at full speed.

2. 7W/mK Thermal Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

3. M.2 Shield Frozr

 With double ball bearings fan to keeps M.2 SSDs safe while preventing throttling, making them run faster.

4. Pump Fan Support

 Control your watercooling pump speeds for superior flow and noise control.

5. MOSFET Baseplate

 Baseplate on the back to keep MOSFET in lower temparature, ensuring better heat dissipation effect.

5. 10-Layer Server Grade PCB

 10-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Aggressive Power Design

8 Phase

VCore Power Stage

2 Phase

SOC Power

1 Phase

MISC Power

Direct 8+2+1 CPU POWER DESIGN

Unleash and sustain the maximum performance with a strong VRM design built with a total of 8+2+1 phases. Combining 80A Smart Power Stage, the MPG B650I EDGE WIFI is ready for high-end AM5 processors.

Embrace Lightning Speeds

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

MSI Steel Armor Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Maximise Your Storage Capabilities

Fast and future ready storage

MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

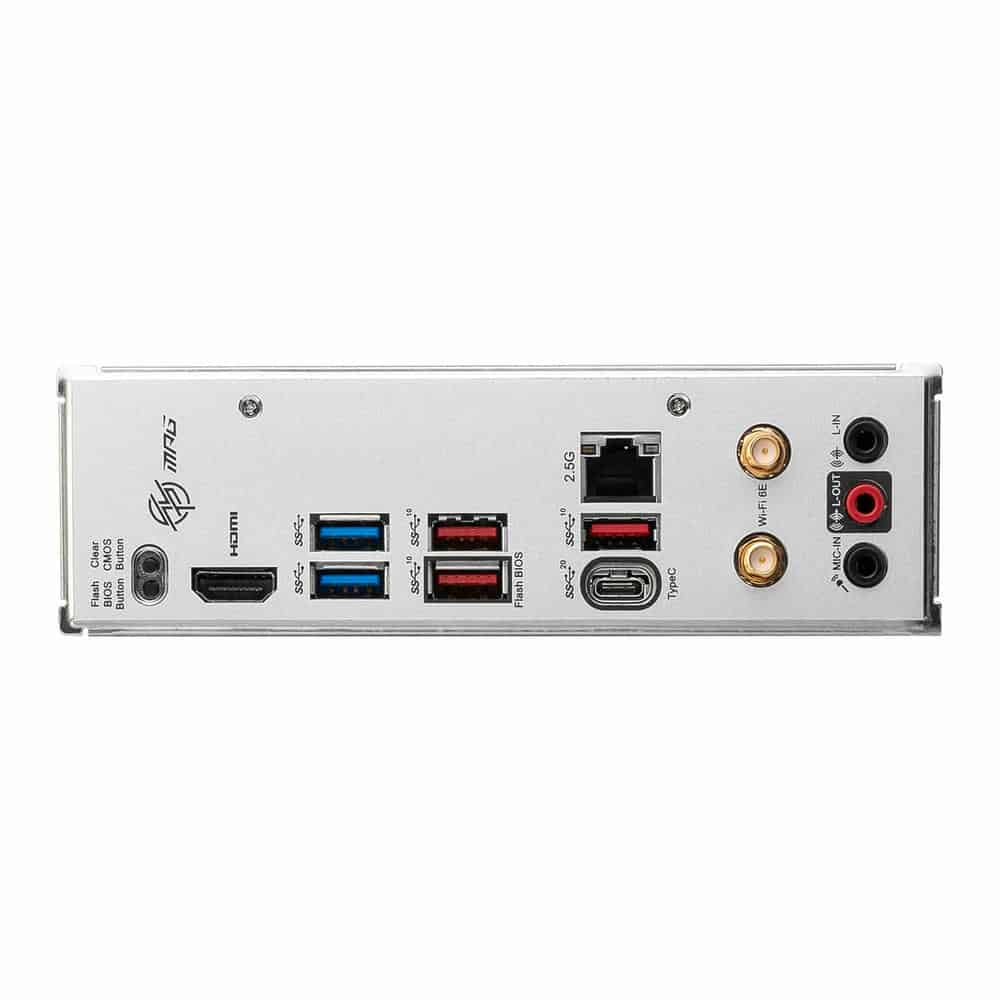

Fully Comprehensive I/O Panel

Rear:

 1: Clear CMOS Button
2: USB 3.2 Gen 1 5Gbps (Type-A)
3: 2.5G LAN
4: Wi-Fi / Bluetooth
5: Audio Connectors
6: Flash BIOS Button
7: HDMI™
8: USB 3.2 Gen 2 10Gbps (Type-A))
9: USB 3.2 Gen 2 10Gbps (Type-A)
10: USB 3.2 Gen 2x2 20Gbps (Type-C)
