Kinefinity - 'KineMAG Nano 1TB SSD'
The new generation KineMAG SSD

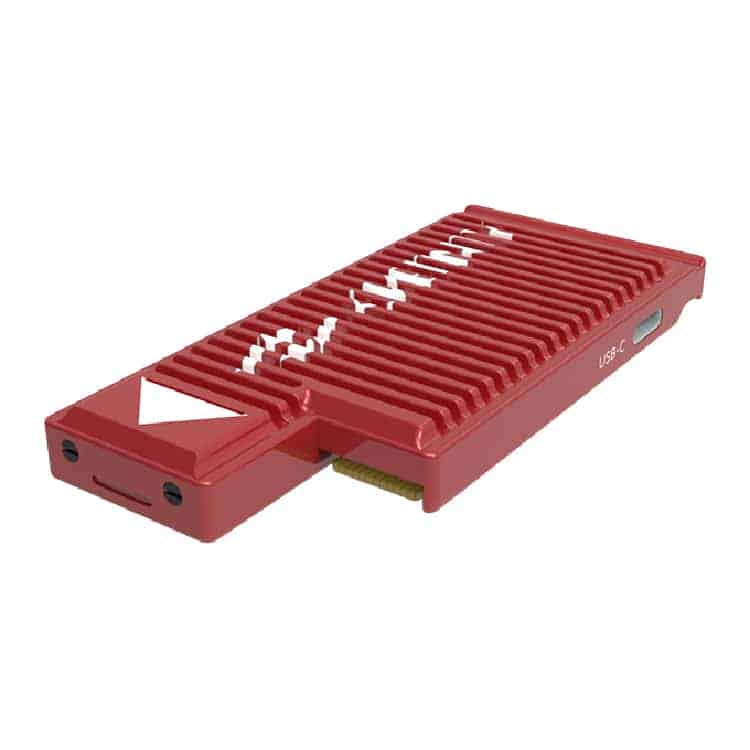

Introducing the Kinefinity KineMAG Nano 1TB, the ultimate SSD storage solution designed exclusively for the MAVO Edge 8K. With its innovative design, the KineMAG Nano combines a compact KineMAG Nano Body with a high-speed M.2 2280 SSD. Featuring a huge transfer speed of up to 10Gbps, this cutting-edge storage device brings high-resolution and high-frame-rate encoding, all while maintaining a significantly smaller form factor compared to traditional SATA SSDs. The MAVO Edge 8K supports the insertion of two KineMAG Nano units, offering advantages such as backup recording and relay recording. Equipped with two high-speed ports, including a robust camera port for seamless footage transfer and a universal USB-C port for efficient offloading and backup to workstations, the KineMAG Nano ensures quick and hassle-free data management. Additionally, the built-in NVMe M.2 1TB SSD of the KineMAG Nano is specially optimized, providing two superior safety features: Read-only and RAID 5. This enhances the safety and robustness of the device, allowing for worry-free content creation even at blazing fast speeds in the camera.
Read-Only
specially optimized NVMe M.2 1TB SSD
The specially optimized NVMe M.2 1TB SSD which was built into the KineMAG Nano gives the KineMAG Nano involuntary Read-only feature: the KineMAG Nano can only be formatted or written in the MAVO Edge 8K. When offloading data through the USB-C port, you can only read the footage in the SSD, but not write to the SSD. The Read-only feature eliminates the risk of accidental deletion or even formatting of the data after the SSD leaves the camera, which greatly improves the safety of the data during the backup or transfer process.
RAID 5
automatically triggered RAID 5
The KineMAG Nano SSD has an especially built-in optimized NVMe M.2 1TB SSD, which gives the KineMAG Nano the characteristic of RAID 5. RAID (Redundant Array of Independent Hard Disks), is a disk array formed by combining multiple disks. RAID 5 uses redundantly stored parity information to recover data that may be stored incorrectly. Most mainstream SSD uses NAND Flash, which might cause one or more NAND pages to read incorrectly, thereby destroying the integrity of the data. The RAID feature of the KineMAG Nano refers to the RAID 5 design principle, as page data is damaged or lost, the remaining data and parity information are used to restore the damaged data, thereby providing a strong guarantee of the safety of the data. The automatically triggered RAID 5 offers powerful storage protection for valuable footage.
SSD Reader Free
USB-C USB3.1 Gen2 port

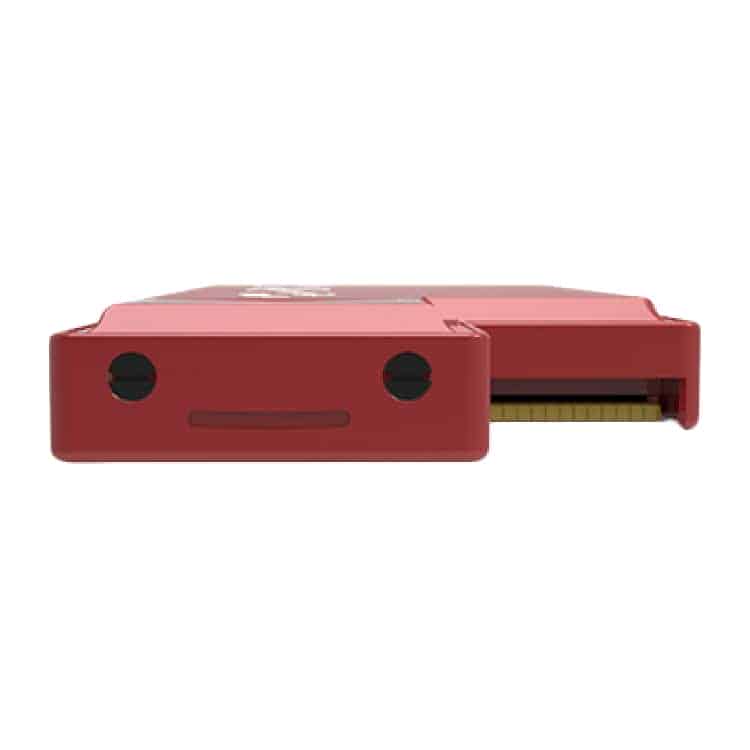

Like other professional camera SSD: The KineMAG Nano has a high-speed and robust camera port, which connects to the PCIe 3.0 interface in the SSD slot of the MAVO Edge 8K. It supports hot-swapping while withstanding much higher usage times than consumer-grade ports.

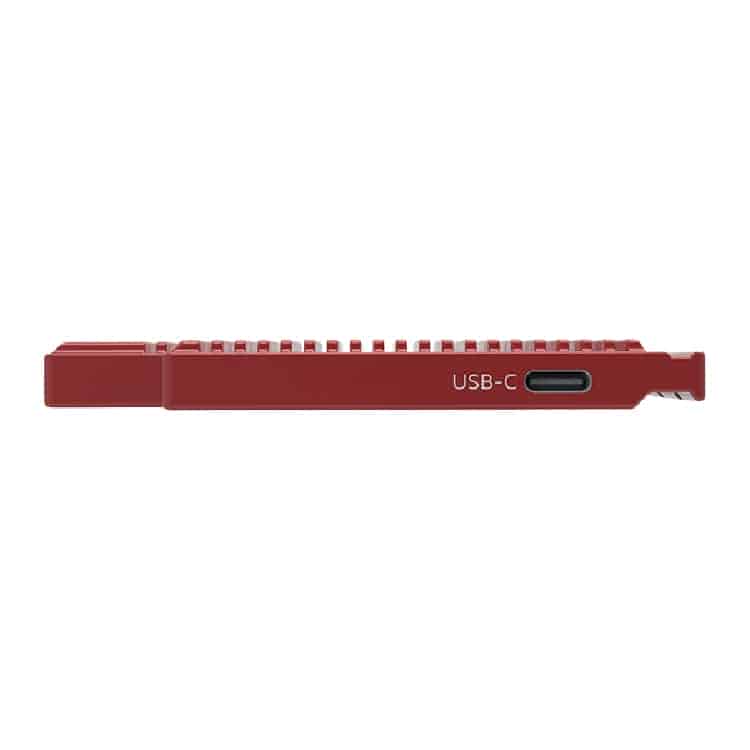

Different from other professional camera SSD: the body of KineMAG Nano has a universal USB-C USB3.1 Gen2 port, which is used for offloading or backing up data to the workstation. There is no need to purchase a dedicated SSD reader, and only via a USB-C cable that supports USB3.1 Gen2, the data can be quickly offloaded to a workstation at a speed up to 10 Gbps. It is blazing fast and unbelievably convenient.
