Din Rail Mountable Ethernet 5 Port SW-005 Ethernet Switch 10/100 Din Rail Mountable
(image for) Din Rail Mountable Ethernet 5 Port SW-005 Ethernet Switch 10/100 Din Rail Mountable
(image for) Din Rail Mountable Ethernet 5 Port SW-005 Ethernet Switch 10/100 Din Rail Mountable
  • In Stock:  10

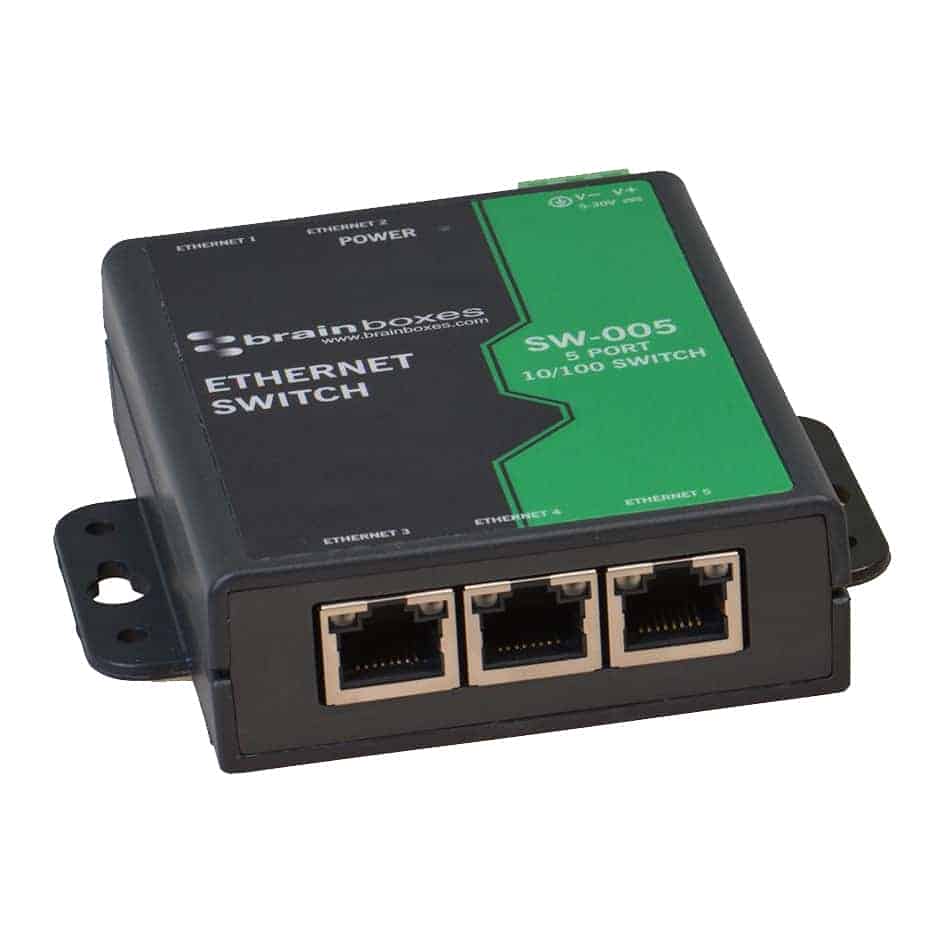

Din Rail Mountable Ethernet 5 Port SW-005 Ethernet Switch 10/100 Din Rail Mountable

£50.39
Product Overview Highly Versatile Unmanaged Switch +5 to +30 Volt Power Input enables the device to be run from a standard car battery - ideal for in vehicle applications. Attention to Safety Non conducting polyamide casing prevents electrical conduction – for safer...

Edition

Unmanaged Switch


GTIN

837324009866


Manufacturer code

SW-005


Max. Power Consumption

1.1 W


Model Number

SW-005


Total Network Ports

5 x 10/100 (Fast Ethernet) RJ-45


Weight

0.134 kg


Add to Cart:
  • Manufactured by: Brainboxes
  • This product was added to our catalog on Tuesday 31 May, 2005.

Product Overview

Highly Versatile Unmanaged Switch

+5 to +30 Volt Power Input enables the device to be run from a standard car battery - ideal for in vehicle applications.

Attention to Safety

Non conducting polyamide casing prevents electrical conduction – for safer installation.

Wall Mountable

Integral wall mount option can be used with MK-048 clips to allow DIN rail mounting.

Easy Wire Removable Screw Terminal Block

No software needed. Simply plug in any ethernet cable.

All Ethernet ports are Auto MDI/MDIX supporting straight through or crossover Ethernet cables.

Wide Range Input Power

From +5VDC to +30VDC, power consumption is optimised based on the status of the link device.

There are currently no product reviews.

Features

• 5 Port 10/100 Mbs Ethernet Switch.
• Power inputs: +5V to +30V DC.
• Compact design with integral wall mount.
• No software required - Simply plug in and connect.
• Integral wall mount or optional DIN rail mount.
• -10ºC to +60ºC/+14ºF to +140ºF temperature range.

Edition

Unmanaged Switch


GTIN

837324009866


Manufacturer code

SW-005


Max. Power Consumption

1.1 W


Model Number

SW-005


Total Network Ports

5 x 10/100 (Fast Ethernet) RJ-45


Weight

0.134 kg
