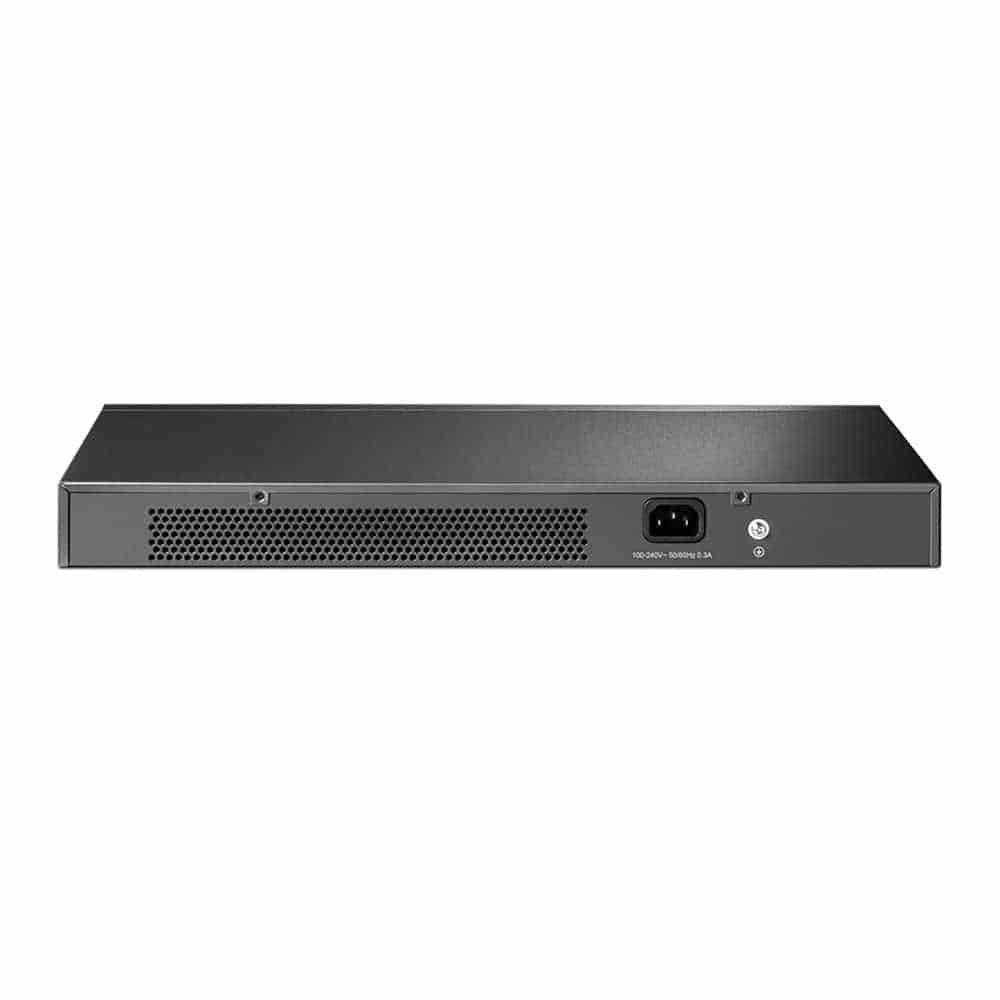

tp-link TL-SG1016 16-Port Gigabit Ethernet Switch
(image for) tp-link TL-SG1016 16-Port Gigabit Ethernet Switch
(image for) tp-link TL-SG1016 16-Port Gigabit Ethernet Switch
(image for) tp-link TL-SG1016 16-Port Gigabit Ethernet Switch
  • In Stock: 10
  • Manufactured by: tp-link

tp-link TL-SG1016 16-Port Gigabit Ethernet Switch

$128.96
Product Overview TP-LINK 16-Port Gigabit Easy Smart Networking Switch The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to...

Dimensions

440 x 44 x 180 mm


Edition

Unmanaged Switch


Form Factor

Rackmount


Forwarding Rate

23.8 Mpps


GTIN

6935364081263


Includes

Mounting Kit


MAC Address Table Size

8K Entries


Manufacturer code

TL-SG1016


Max. Power Consumption

9.26 W


Model Number

TL-SG1016


Network Protocols

IEEE 802.1p
IEEE 802.3ab
IEEE 802.3i
IEEE 802.3u
IEEE 802.3x


Power Supply

Internal AC Power Supply


Switching Capacity

32 Gbps


Total Network Ports

16 x 10/100/1000 (Gigabit) RJ-45


Add to Cart:
  • Manufactured by: tp-link
  • This product was added to our catalog on Wednesday 30 April, 2042.

Product Overview

TP-LINK 16-Port Gigabit Easy Smart Networking Switch

The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance

All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

There are currently no product reviews.

Features

• 16 10/100/1000Mbps RJ45 ports.
• Innovative energy-efficient technology saves power consumption.
• Supports MAC address self-learning and auto MDI/MDIX.
• Standard 19-inch rack-mountable steel case.

Dimensions

440 x 44 x 180 mm


Edition

Unmanaged Switch


Form Factor

Rackmount


Forwarding Rate

23.8 Mpps


GTIN

6935364081263


Includes

Mounting Kit


MAC Address Table Size

8K Entries


Manufacturer code

TL-SG1016


Max. Power Consumption

9.26 W


Model Number

TL-SG1016


Network Protocols

IEEE 802.1p
IEEE 802.3ab
IEEE 802.3i
IEEE 802.3u
IEEE 802.3x


Power Supply

Internal AC Power Supply


Switching Capacity

32 Gbps


Total Network Ports

16 x 10/100/1000 (Gigabit) RJ-45
