(image for) TP-LINK MC112CS WDM Media Converter
  • In Stock:  10

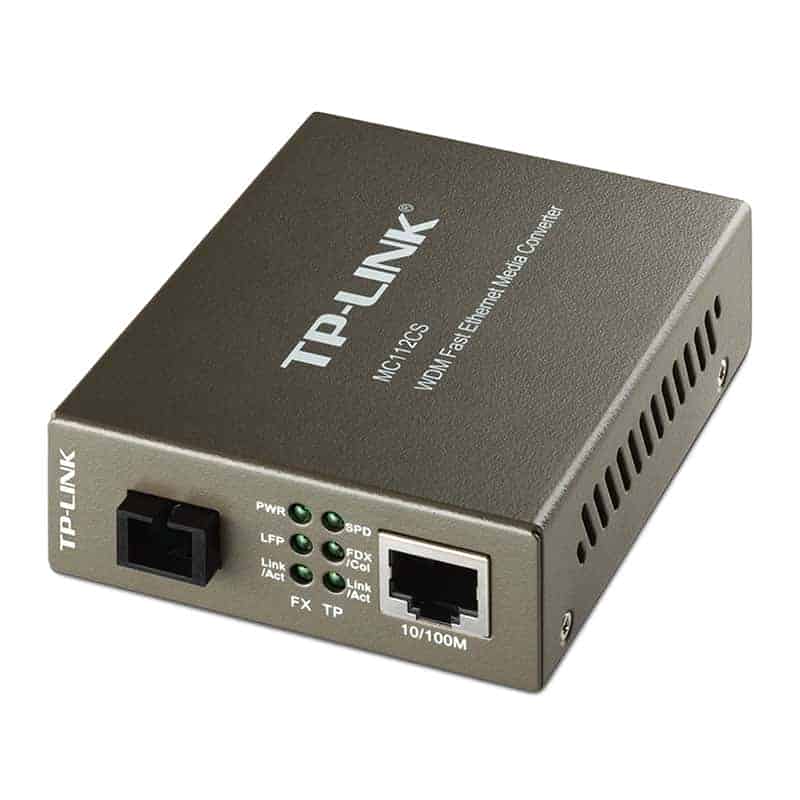

TP-LINK MC112CS WDM Media Converter

£34.55
(0  Reviews) Add Your Review
Product Overview WDM Media Converter The MC112CS is a media converter designed to convert 100BASE-FX fibre to 100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fibre cable to transmit and receive data, which will save half cabling cost for you. Designed...

Basic Function

Adopts WDM technology
Extends fiber distance up to 20km
Half/Full-Duplex transfer mode for FX port
minimize the loss caused by link failure timely


Certification

CE
FCC
RoHS


Dimensions

95 x 73 x 27 mm


LED Indicator

Link/Act
PWR


Manufacturer code

MC112CS


Max. Power Consumption

2.41W


Network Media 100BASE-FX

Single-mode Fiber


Network Media 100BASE-T

EIA/TIA-568 100Ω STP (maximum 100m)
UTP category 5, 5e cable (maximum 100m)


Network Media 10BASE-T

EIA/TIA-568 100Ω STP (maximum 100m)
UTP category 3, 4, 5 cable (maximum 100m)


Operating Humidity

10%~90% non-condensing


Operating Temperature

0°C to 40°C (32°F to 104°F)


Package Contents

Installation Guide
Media Converter MC112CS
Power Adapter


Ports

1 x 10/100M RJ45 port (Auto MDI/MDIX)
1 x 100M SC/UPC port


Power Supply

External Power Adapter


Standards and Protocols

IEEE 802.3
IEEE 802.3u


Storage Humidity

5%~90% non-condensing


Storage Temperature

-40˚C to 70˚C (-40˚F to 158˚F)


Wavelength

1310nm Tx/1550nm Rx


WDM RX

1550nm


WDM TX

1310nm


Add to Cart:
  • Manufactured by: tp-link
